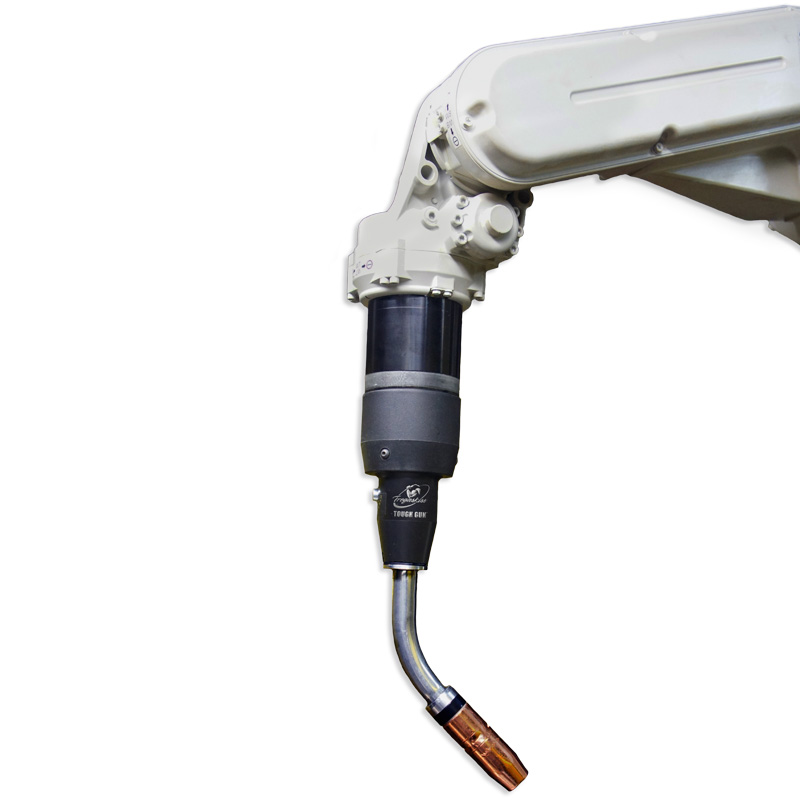

TOUGH GUN TA3 robotic air-cooled MIG gun in action with colorful welding sparks TOUGH GUN TA3 robotic air-cooled MIG gun installed on robot TOUGH GUN TA3 robotic air-cooled MIG gun installed on robot TOUGH GUN TA3 robotic air-cooled MIG gun installed on robot TOUGH GUN TA3 robotic air-cooled MIG gun installed on robot

TOUGH GUN TA3 Robotic Air-Cooled MIG Guns

Maximize Throughput. Minimize Costs.

Designed with our unique and durable low-stress robotic (LSR+) unicable, TOUGH GUN® TA3 robotic air-cooled MIG guns feed through the robot arm and provide outstanding precision and reliability.

The TOUGH GUN TA3 MIG gun combines the most valuable product options from our legacy TOUGH GUN ThruArm G1 and G2 series platforms, plus new features that provide increased durability.

Configure My Gun Reverse Lookup

Infographic explaining new product features provide increased durability
Infographic explaining product offers easy maintenance with minimal downtime
  • Re-engineered neck clamp improves durability and consistency of clamping force
  • Additional standard neck options
    • Expands the range of tool center point options and variety of working envelopes
    • Reduces costs and lead times for necks that were previously specials
  • Compatible with legacy product
    • Compatible with existing TOUGH GUN® ThruArm® G1 series air-cooled necks, power pins and consumables
    • Replacement for TOUGH GUN ThruArm G1 series
    • Gun part numbers are unaffected by these changes
    • New black gun body simplifies identification of upgraded vs. legacy guns
  • Features a precision-engineered keyway system for accurate alignment and quick replacement
  • Available as a complete package – from the power pin to the contact tip – for ABB®, KUKA®, Motoman®, OTC Daihen®, Panasonic®, COMAU®, Kawasaki® and FANUC® robots
  • Clutch and solid mount options available for select models
  • Wire brake, air blast and TOUGH GUN I.C.E.® technology are available options for select models

Processes

  • MIG (GMAW) welding

Duty Cycle Rating

  • 100%: 350 amp with mixed gases
    Gun performance unchanged. Ratings are based on tests that comply with the new 2013 IEC 60974-7 standards.

Configurations Available for

  • ABB®, FANUC®, Yaskawa® Motoman®, and Panasonic® with standard lead time
  • COMAU®, Kawasaki®, KUKA®, OTC Daihen® and Nachi® are available but subject to a 10-15 day lead time

Customize your TOUGH GUN TA3 robotic air-cooled MIG gun online

Now you can get access to additional resources and an expanded replacement parts list with diagram when you configure the gun part number you need or reverse lookup your existing gun part number.

This new mobile-friendly online configurator provides downloadable exploded view diagrams and other valuable takeaways that you can print, save in PDF format, or share via email.

Check it out today!

Configure a TOUGH GUN TA3 robotic air-cooled MIG gun online
Find the replacement parts list and other details for the TOUGH GUN TA3 robotic air-cooled MIG gun you already have

Consumables Systems

AccuLock R consumables family including contact tips, nozzle and slip-on diffuser
AccuLock™ R Consumables
TOUGH LOCK consumables family shown with contact tips, retaining head and nozzle
TOUGH LOCK® Consumables

MIG Gun Liners

Family of three QUICK LOAD liners with liner retainers
QUICK LOAD® Liners
Set of two Tregaskiss conventional liners for MIG welding guns
Conventional Liners

Consumables Systems

NOTE: There is no impact to Tool Center Point (TCP) when upgrading to AccuLock R consumables from TOUGH LOCK or many other consumables.

AccuLock Contact Tips; Copper

Part NumberDescription
T-A030CH*^for 0.030″ (0.8 mm) wire, copper; qty. 10
T-A035CH*^for 0.035″ (0.9 mm) wire, copper; qty. 10
T-A039CH*^for 0.039″ (1.0 mm) wire, copper; qty. 10
T-A045CH*^for 0.045″ (1.2 mm) wire, copper; qty. 10
T-A052CH*^for 0.052″ (1.3 mm) wire, copper; qty. 10
T-A062CH^for 1/16″ (1.6 mm) wire, copper; qty. 10
T-A072CH*for 0.070″ (1.8 mm) wire, copper; qty. 10
T-A078CH*for 5/64″ (2.0 mm) wire, copper; qty. 10
T-A094CH*for 3/32″ (2.4 mm) wire, copper; qty. 10

*add “-100” to end of the above part numbers for quantities of 100.
^add “-1000” to end of the above part numbers for quantities of 1000.

AccuLock Contact Tips; Chrome Zirconium

Part NumberDescription
T-A030ZH*for 0.030″ (0.8 mm) wire, chrome zirconium; qty. 10
T-A035ZH*for 0.035″ (0.9 mm) wire, chrome zirconium; qty. 10
T-A039ZH*for 0.039″ (1.0 mm) wire, chrome zirconium; qty. 10
T-A045ZH*for 0.045″ (1.2 mm) wire, chrome zirconium; qty. 10
T-A052ZH*for 0.052″ (1.3 mm) wire, chrome zirconium; qty. 10
T-A062ZH*for 1/16″ (1.6 mm) wire, chrome zirconium; qty. 10

*add “-100” to end of the above part numbers for quantities of 100.

AccuLock Contact Tips; HDP

Part NumberDescription
T-A035WH*for 0.035″ (0.9 mm) wire, HDP; qty. 10
T-A039WH*for 0.039″ (1.0 mm) wire, HDP; qty. 10
T-A045WH*for 0.045″ (1.2 mm) wire, HDP; qty. 10
T-A052WH*for 0.052″ (1.3 mm) wire, HDP; qty. 10

*add “-100” to end of the above part numbers for quantities of 100.

Part NumberDescription
D-ATSH*Gas diffuser, slip-on; qty. 10
D-ATTH*Gas diffuser, thread-on; qty. 10

*add “-100” to end of the above part numbers for quantities of 100.

Tregaskiss® Nozzles; Slip-On

Part NumberDescription
401-6-62HD – 5/8″ bore, 1/8″ recess (copper); qty. 10
401-81-62HD – 5/8” bore, 1/8” stick out (copper); qty. 10
401-4-62SD – 5/8″ bore, 1/8” recess (copper); qty. 10
401-8-62SD – 5/8” bore, 1/8” stick out (copper); qty. 10
401-48-62HD – 5/8” bore, flush tip (bottleneck, copper); qty. 10
401-71-62HD – 5/8” bore, 1/8” recess (brass); qty. 10
401-87-62HD – 5/8” bore, 1/8” stick out (brass); qty. 10
401-30-62SD – 5/8” bore, 1/8” stick out (bottleneck, brass); qty. 10

Tregaskiss Nozzles; Thread-On

Part NumberDescription
401-14-62HD – 5/8″ bore, 1/8″ recess (copper); qty. 10
401-20-62HD – 5/8″ bore, 1/8″ stick out (copper); qty. 10
401-43-62SD – 5/8″ bore, 1/8″ recess (copper); qty. 10
401-18-62SD – 5/8″ bore, 1/8″ stick out (copper); qty. 10
401-30-62TSD – 5/8” bore, 1/8” stick out (bottleneck, brass); qty. 10

TOUGH LOCK Contact Tips; Standard Duty (SD)

Part NumberDescription
403-14-30for 0.030″ (0.8 mm) wire; qty. 10
403-14-35for 0.035″ (0.9 mm) wire; qty. 10
403-14-45for 0.045″ (1.2 mm) wire; qty. 10

TOUGH LOCK Contact Tips; Standard Duty Tapered

Part NumberDescription
403-12-30for 0.030″ (0.8 mm) wire; qty. 10
403-12-35for 0.035″ (0.9 mm) wire; qty. 10
403-12-1.0for 0.040″ (1.0 mm) wire; qty. 10
403-12-45for 0.045″ (1.2 mm) wire; qty.10

TOUGH LOCK Contact Tips; Heavy Duty (HD)

Part NumberDescription
403-20-30for 0.030″ (0.8 mm) wire; qty.10
403-20-35for 0.035″ (0.9 mm) wire; qty.10
403-20-1.0for 1.0 mm wire; qty.10
403-20-45for 0.045″ (1.2 mm) wire; qty.10
403-20-364for 3/64″ (1.2 mm) wire; qty.10
403-20-52for 0.052″ (1.3 mm) wire; qty.10
403-20-1.4for 1.4 mm wire; qty.10
403-20-116for 1/16″ (1.6 mm) wire; qty.10
403-20-1.8for 1.8 mm wire; qty.10
403-20-78for 0.078″ (2.0 mm) wire; qty.10
403-20-564for 5/64″ (2.0 mm) wire; qty.10
403-20-332for 3/32″ (2.4 mm) wire; qty.10

TOUGH LOCK Contact Tips; Extended Life Heavy Duty (EHD)

Part NumberDescription
403-27-30for 0.030″ (0.8 mm) wire; qty.10
403-27-35for 0.035″ (0.9 mm) wire; qty.10
403-27-1.0for 1.0 mm wire; qty.10
403-27-45for 0.045″ (1.2 mm) wire; qty.10
403-27-364for 3/64″ (1.2 mm) wire; qty.10
403-27-116for 1/16″ (1.6 mm) wire; qty.10

Contact Tips; Heavy Duty Tapered

Part NumberDescription
403-21-30for 0.030″ (0.8 mm) wire; qty.10
403-21-35for 0.035″ (0.9 mm) wire; qty.10
403-21-1.0for 1.0 mm wire; qty.10
403-21-45for 0.045″ (1.2 mm) wire; qty.10
403-21-52for 0.052″ (1.3 mm) wire; qty.10
403-21-116for 1/16″ (1.6 mm) wire; qty.10

Teach Tips (used for robotic programming)

Part NumberDescription
403-20-01Adjustable teach tip
403-20-05Teach tip 1/2″ CTWD
403-20-062Teach tip 5/8″ CTWD
403-20-075Teach tip 3/4″ CTWD
403-20-10mmTeach tip 10 mm CTWD
403-20-15mmTeach tip 15 mm CTWD

TOUGH LOCK Retaining Heads

Part NumberDescription
404-18-25SD – for slip-on nozzles; qty. 25
404-18SD – for slip-on nozzles; qty. 100
404-32-25HD – for slip-on nozzles; qty. 25
404-32HD – for slip-on nozzles; qty. 100
404-32-250HD – for slip-on nozzles; qty. 250
404-52-25HD – for thread-on nozzles; qty. 25
404-52HD – for thread-on nozzles; qty. 100

Tregaskiss Nozzles; Slip-On

Part NumberDescription
401-6-62HD – 5/8″ bore, 1/8″ recess (copper); qty.10
401-81-62HD – 5/8” bore, 1/8” stick out (copper); qty.10
401-4-62SD – 5/8” bore, 1/8” recess (copper); qty.10
401-8-62SD – 5/8” bore, 1/8” stick out (copper); qty.10
401-42-50SD – 1/2″ bore, 1/8” stick out (bottleneck, brass); qty.10
401-48-50SD – 1/2″ bore, 1/8” stick out (bottleneck, brass); qty.10
401-48-62HD – 5/8” bore, flush tip (bottleneck, copper); qty.10
401-44-50SD – 1/2″ bore, 1/4″ stick out (bottleneck, brass); qty.10
401-49-50HD – 1/2″ bore, flush tip (bottleneck, brass); qty.10
401-87-62HD – 5/8” bore, 1/8” stick out (brass); qty.10
401-30-62SD – 5/8″ bore, 1/8″ stick out (bottleneck, brass); qty.10

Tregaskiss Nozzles; Thread-On

Part NumberDescription
401-14-62HD – 5/8″ bore, 1/8″ recess (copper); qty.10
401-41-62HD – 5/8” bore, 1/8” stick out (copper); qty.10
401-53-62HD – 5/8″ bore, 1/8″ stick out (bottleneck, copper); qty.10
401-20-62HD – 5/8″ bore, 1/8″ stick out (copper); qty.10
401-43-62SD – 5/8″ bore, 1/8″ recess (copper); qty.10
401-18-62SD – 5/8” bore, 1/8” stick out (copper); qty.10

MIG Gun Liners

Part NumberDescription
415-30-6Q
QUICK LOAD liner for 0.030″ (0.8 mm) wire; 6′ (1.8 m)
415-35-6QQUICK LOAD liner for 0.035″ (0.9 mm) – 0.045″ (1.2 mm) wire; 6′ (1.8 m)
415-116-6QQUICK LOAD liner for 0.052″ (1.3 mm) – 1/16 (1.6 mm) wire; 6′ (1.8 m)
415-564-6QQUICK LOAD liner for 1/16″ (1.6 mm) – 5/64″ (2.0 mm) wire; 6′ (1.8 m)
415-332-6QQUICK LOAD liner for 0.078″ (2.0 mm) – 3/32″ (2.4 mm) wire; 6′ (1.8 m) (requires 415-24 retainer)

QUICK LOAD Pro Liners for Cored Wire

Part NumberDescription
415-35-062QQUICK LOAD liner for 0.035″ (0.9 mm) – 0.045″ (1.2 mm) cored wire; 6′ (1.8 m)
415-116-062QQUICK LOAD liner for 0.045″ (1.2 mm) – 1/16″ (1.6 mm) cored wire; 6′ (1.8 m)

QUICK LOAD Liner Retainers

Required for initial installation only (sold separately)

Part NumberDescription
415-26QUICK LOAD liner retainer (required for 0.030″-5/64″ wire)
415-24QUICK LOAD liner retainer (required for 0.078″-3/32″ wire)
415-31QUICK LOAD liner retainer (required for QUICK LOAD liners for cored wire)
Part NumberDescription
415-30-6for 0.030″ (0.8 mm) wire; 6′ (1.8 m) – round wound
415-35-6for 0.035″ (0.9 mm) – 0.045″ (1.2 mm) wire; 6′ (1.8 m) – round wound
415-116-6for 0.052″ (1.3 mm) – 1/16″ (1.6 mm) wire; 6′ (1.8 m) – round wound
415-564-6for 1/16″ (1.6 mm) – 5/64″ (2.0 mm) wire; 6′ (1.8 m) – round wound

Jump Liners

(to be used with conventional liners on MIG guns equipped with wire brake)

Part NumberDescription
495-18-35for 0.035″ (0.9 mm) – 0.045″ (1.2 mm) wire; 26″
495-18-116for 0.045″ (1.2 mm) – 1/16″ (1.6 mm) wire; 26″
Power Through Spatter with the NEW TOUGH GUN TT4A and TT4E Reamer Nozzle Cleaning Stations

TOUGH GUN® TT4 Reamer

The TOUGH GUN TT4 reamer robotic nozzle cleaning station — now available in both analog and Ethernet models — is TOUGH on spatter and operates reliably in even the harshest welding environments. Automating spatter removal will help to extend the life of your robotic MIG guns and consumables, benefiting both your bottom line and your production uptime and throughput. Learn more about the TOUGH GUN TT4A reamer or the TOUGH GUN TT4E reamer.

TOUGH GUN TT4 Reamer on a TOUGH GUN Multi-Feed System

TOUGH GARD® Anti-Spatter Multi-Feed System

Interested in the ultimate solution to refilling the reservoirs on your nozzle cleaning stations? Feed up to 10 TOUGH GUN Reamer units from a single 5-gallon or 55-gallon drum of TOUGH GARD anti-spatter liquid with the TOUGH GARD multi-feed system. Find out more.

New 2021 TOUGH GARD anti-spatter liquid product family

TOUGH GARD Anti-Spatter Liquid

This ready-to-use water-soluble, non-toxic product creates a sacrificial surface that reduces spatter adhesion, and unlike oil-based anti-spatter solutions, won’t clog the sprayer. This prolongs the life of your consumables and minimizes downtime due to nozzle cleaning, which can help reduce your operating and maintenance costs. Learn more.

Neck checking fixture

Neck Checking Fixture

The TOUGH GUN neck checking fixture allows you to verify and re-master your tool center point (TCP). In the event of a collision, this fixture can be used to realign the neck. Click here for additional information.
