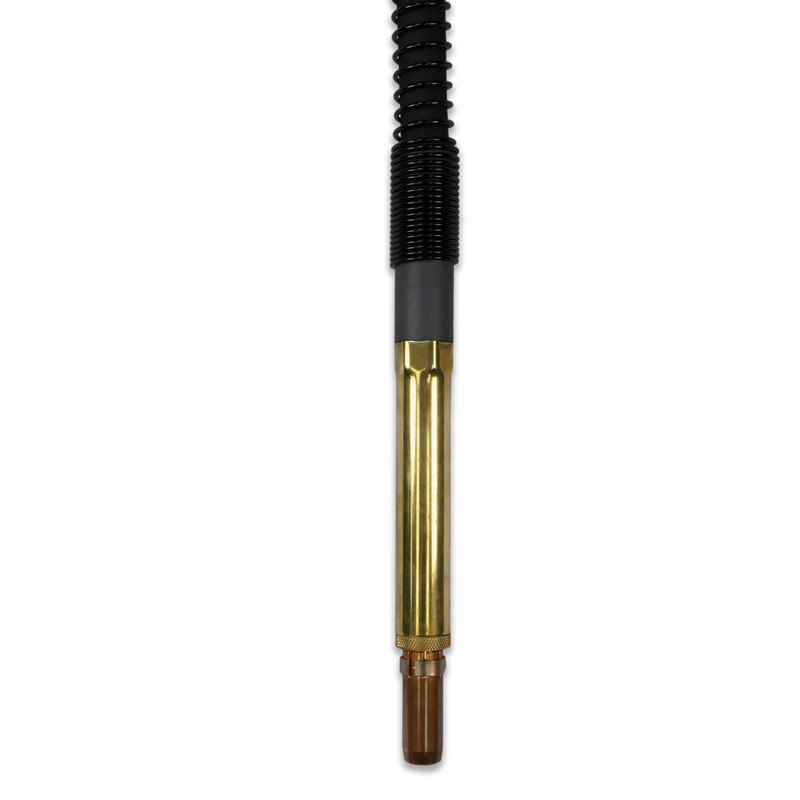

AW2 Fixed Automatic Water-Cooled MIG Guns

Available with AccuLock™ R Consumables

Tregaskiss® AW2 fixed automatic water-cooled MIG guns are designed for dependable performance in high amperage, high temperature hard tooling welding applications.

Choose from two barrel lengths to better reach the weld. Available with or without a cable, this MIG gun adapts easily to most applications. Maintenance personnel appreciate the simplicity of the gun design with its threaded connections and minimal number of replacement parts.

more...

Configure My Gun Reverse Lookup

  • Choose from 9.25″ (23.5 cm) and 12.25″ (31.1 cm) barrel lengths to better reach the weld
  • Available with or without a cable
  • Power cable equipped guns available in lengths of 3-ft. to 25-ft. in 1/2-ft. increments
  • Internal threaded connections stay tight inside the anti-vibration compression fit body for good electrical connectivity and longer life
  • Power pins connect to wire feeders and machines from most major manufacturers

Processes

  • MIG (GMAW) welding

Duty Cycle Rating

  • 100%: 600 amp with CO2 and mixed gases
  • Ratings are based on tests that comply with IEC 60974-7 standards

Part Numbers

Consumable Systems

MIG Gun Liners


Consumable Systems

Part NumberDescription
D-ATSH-AW2AccuLock R Diffuser; thread-on; qty. 25
T-A045CH*^AccuLock Contact Tip; qty.10
5627Quik Tip Nozzle, water-cooled, 1/8″ recess
1840003Insulator

*add “-100” to end of the above part number for quantity of 100.
^add “1000” to end of the above part number for quantity of 1000.

Part NumberDescription
DW-1Diffuser, water-cooled
T-045Contact Tip
THW-1Tip Holder, water-cooled
NW-3418CNozzle, water-cooled, 1/8″ recess
Part NumberDescription
1070101Diffuser, water-cooled
T1045Contact Tip
5627Nozzle, 1/8″ recess
1840003Insulator

MIG Gun Liners

Part NumberDescription
L1A-15for 0.023” (0.6 mm) – 0.030” (0.8 mm) wire; 15’ (4.57 m)
L1A-25for 0.023” (0.6 mm) – 0.030” (0.8 mm) wire; 25’ (7.62 m)
L2A-15for 0.030” (0.9 mm) – 0.035” (0.9 mm) wire; 15’ (4.57 m)
L2A-25for 0.030” (0.9 mm) – 0.035” (0.9 mm) wire; 25’ (7.62 m)
L3A-15for 0.035” (0.9 mm) – 0.045” (1.2 mm) wire; 15’ (4.57 m)
L3A-25for 0.035” (0.9 mm) – 0.045” (1.2 mm) wire; 25’ (7.62 m)
L4A-15for 0.045” (1.2 mm) – 1/16” (1.6 mm) wire; 15’ (4.57 m)
L4A-25for 0.045” (1.2 mm) – 1/16” (1.6 mm) wire; 25’ (7.62 m)
L6A-15for 5/64” (2.0 mm) wire; 15’ (4.57 m)
L6A-25for 5/64” (2.0 mm) wire; 25’ (7.62 m)
L7A-15for 3/32” (2.4 mm) wire; 15’ (4.57 m)
L7A-25for 3/32” (2.4 mm) wire; 25’ (7.62 m)
L8A-15for 7/64″ (2.8 mm) – 1/8″ (3.2 mm) wire; 15’ (4.57 m)
L8A-25for 7/64″ (2.8 mm) – 1/8″ (3.2 mm) wire; 25’ (7.62 m)

Customize your Tregaskiss® AW2 fixed automatic water-cooled MIG gun online!

Use our new mobile-friendly online configurator to configure the gun part number you need, or reverse lookup your existing gun part number – plus, get access to additional resources and valuable takeaways that you can print, save in PDF format for later, or share via email.

Configure your Tregaskiss AW2 fixed automatic water-cooled MIG gun online
Find the replacement parts list for the Tregaskiss AW2 fixed automatic water-cooled MIG gun you already have

Kits

Part NumberKit TypeDescription
1880159 Pitch Rack Kit AWS StyleIncludes 32 pitch racks with mounting screws.  Requires a minimum gun length of 9.60″ (245 mm) and is field installable
WC2HK-1Water Cooler Hookup KitIncludes two 15′ hoses and fittings to connect our gun to a water cooler
WC2HK-2Water Cooler Hookup KitIncludes 30′ hoses and fittings to connect our gun to a water cooler
WC2HK-3Water Cooler Hookup Kit Hose3 ft hose

TOUGH GARD anti-spatter liquid product family

TOUGH GARD Anti-Spatter Liquid

This ready-to-use water-soluble, non-toxic product creates a sacrificial surface that reduces spatter adhesion. This prolongs the life of your consumables and minimizes downtime due to nozzle cleaning, which can help reduce your operating and maintenance costs. Learn more about TOUGH GARD® anti-spatter liquid.
